Augmented reality mapper

maintenance & quality



immotef 01-02.png



FOLLOW PLANS ACCURATELY AND EFFICIENTLY

AR Mapper is an application that makes the use of a 2D prints on the construction site unnecessary and eliminates human errors. With the Augmented Reality application the site manager, contractor or subcontractor can follow the work precisely, and digitally. They can follow a 3D projection of the entire project on every layer, whether it is about plumbing, insulation, electricity or any other technical installation. Employees can report work on a daily basis and implement comments. Follow-up and communication about the work is stored on the server, on where information can be accessed by the authorized persons.







MANAGE ALL TEAMS

Make a transparent overview of all teams and project tasks. Every subcontractor (HVAV, piping, electric installation, sanitary, or telecom) can follow plans in a 3D environment. Easily project the plans in Augmented Reality through a tablet or HoloLens precisely on the designated location.


MAKE CHECKS AND REPORTS

Manage checklists in a 3D environment and report easily with screenshots and voice messages. Check the installations in AR and detect mistakes in a blink of an eye. Communicate errors in real time.







LOCATION RECOGNITION

Easily navigate through the construction site and call up installation plans for each room by scanning QR code.






AR Mapper also enables you to:


Measure and plan installings in AR on site


Display plans in AR on designated location

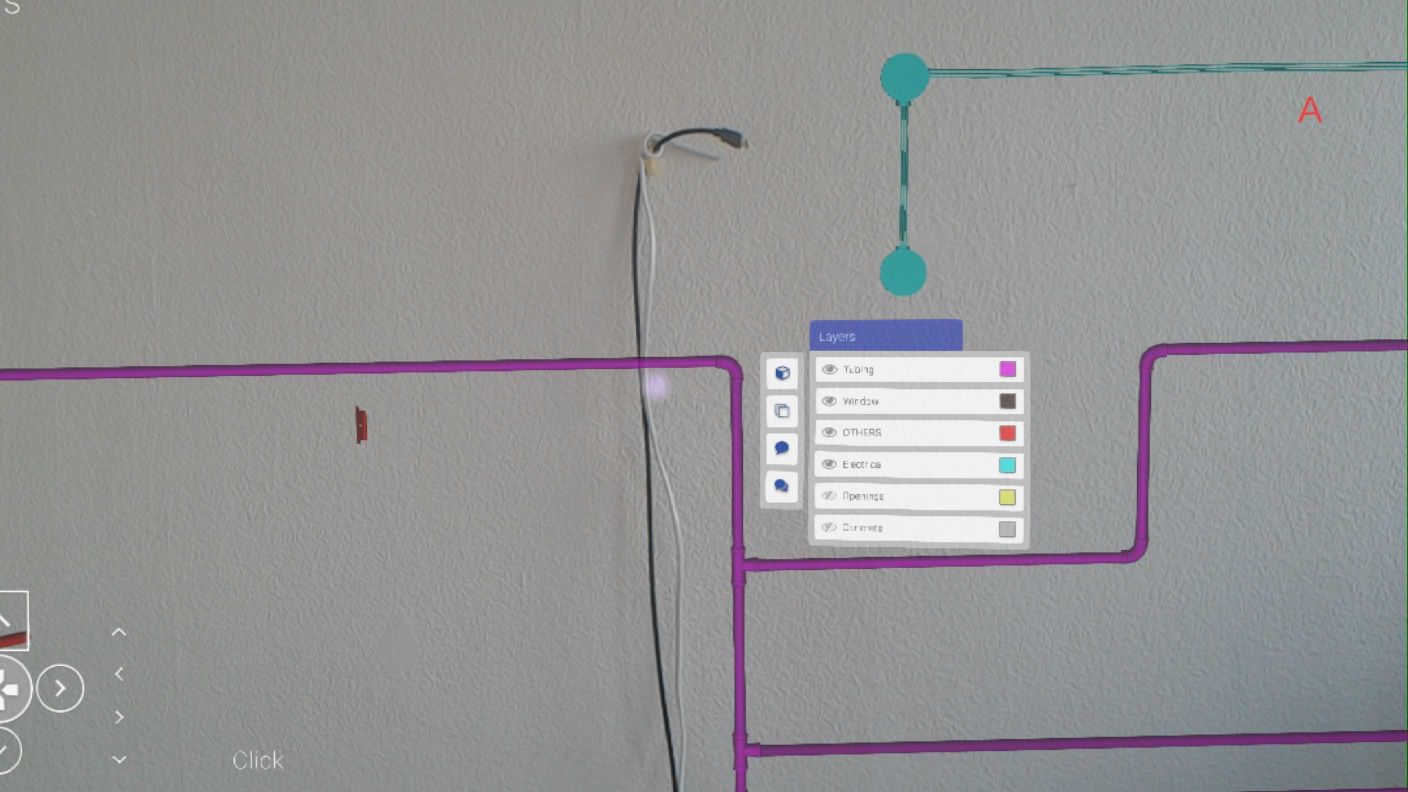

Check installations with hologaphic overlay


Call up plans


Make annotations

Collaborate in 3D







I think the precision is amazing. The way the model is standing still while you are moving around and the milimeter-precision of the model on the real world, I think it’s amazing, and I haven’t seen it before somewhere else.
— Oscar Otto, ICT Manager, Kalsbeek BV
